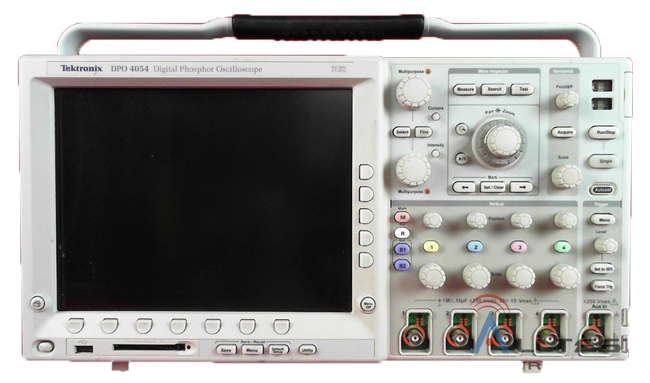

DPO4054 Oscilloscope 500 MHz 2.5 GS/s, 4 Channel

The DPO4000 Series digital phosphor oscilloscopes deliver the performance you need to visualize even your most demanding signals. Bandwidths range from 350 MHz to 1 GHz, and with all models offering a minimum of 5-times over-sampling on all channels and sin(x)/x interpolation standard, you can be confident that even the fastest transient events will be captured and displayed accurately. The standard 10 M record length on all channels enables you to capture long windows of signal activity while maintaining fine timing resolution. The DPO4000 Series offers a variety of analytical solutions including cursors, 25 automatic measurements, statistics and waveform math. Despite a tiny footprint of only 5.4″ deep and light weight of 11 lbs., the DPO4000 Series offers exceptional performance, a large 10.4″ XGA display and knob per channel vertical controls.

The Tektronix DPO4054 Digital Phosphor Oscilloscope delivers the performance you need to visualize even your most demanding signals. With a 500 MHz Bandwidth and offering a minimum of 5x oversampling on all channels and sin(x)/x interpolation standard, you can be confident that even the fastest transient events will be captured and displayed accurately. The standard 10 M record length on all channels enables you to capture long windows of signal activity while maintaining fine timing resolution.
