Mini-Circuits Labs
eVNA 6 GHz USB Vector Network Analyzer
Key Features
- DYNAMIC RANGE >132 dB
- TRACE NOISE <0.005 dB rms
- OUTPUT POWER -50 to +10 dBm
- TIME DOMAIN Included

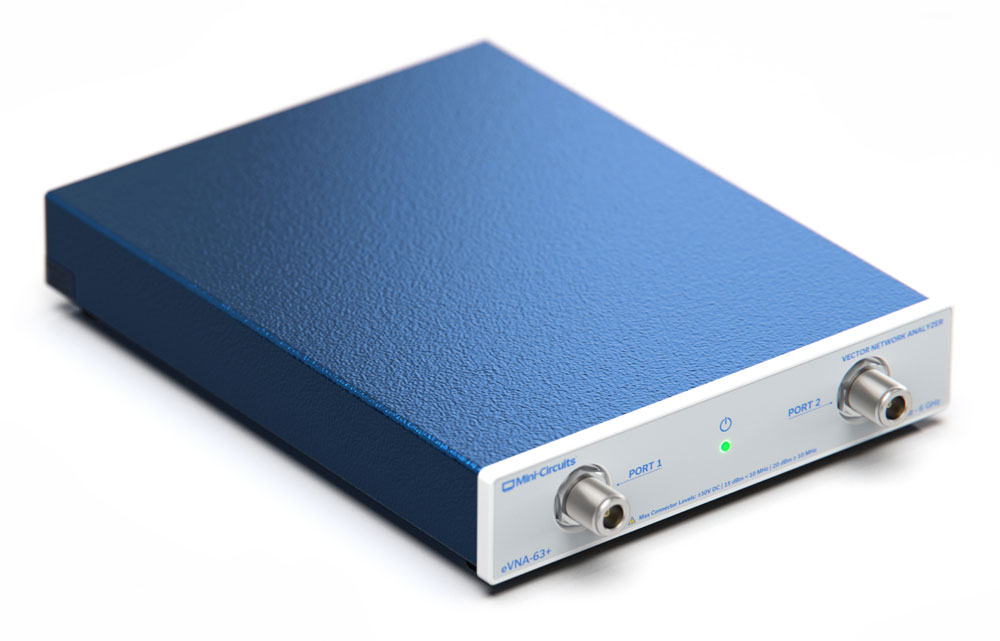

Mini-Circuits’ eVNA-63+ is a high performance, software-controlled vector network analyzer (VNA). By moving the complex data processing and calculation required of vector network measurements out of the instrument and into an advanced software package, Mini-Circuits is able to offer a fully-featured but cost effective VNA for every test bench.

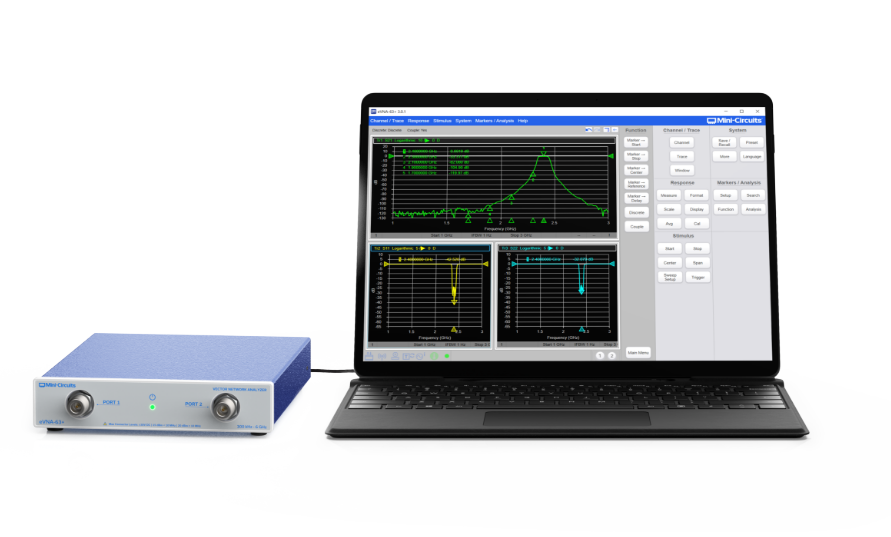

The product ships with Mini-Circuits’ eVNA View software, providing a powerful user interface which will feel familiar to any engineer with experience of VNA measurements. eVNA View also includes a full API with SCPI support, allowing automation of VNA calibrations, measurements, trace displays and data exports from a custom control program.
eVNA 6 GHz USB Vector Network Analyzer
- DYNAMIC RANGE >132 dB
- TRACE NOISE <0.005 dB rms
- OUTPUT POWER -50 to +10 dBm
- TIME DOMAIN Included
- 2-Port 2-Path S-Parameters
- Built-in bias tee accessible on both ports
- API for Windows and LabView
- SCPI Command Interface
- Touchstone File Import and Export
- Size: 10″x8″x1.75″
- Time Domain & Gating
- Port extension De-Embedding
- eMCal (Electronic Calibration)
- Yearly Factory Calibration
- 3 Year Warranty
- Weight: 4.5 kg / 9.92 lbs
Full support for the S11, S12, S21, S22 measurements of 2 port devices. Phase and magnitude data can be visualized in rectangular, Smith chart, or polar pilots formats, or exported as a Touchstone s2p data file.
Time Domain Analysis – Included!Extend your measurement capabilities to include TDR (time domain reflectometry), a process for determining distance or time to impedance changes in a transmission line. These changes could include shorts, opens, connectors or other areas where impedance can change. An excellent method for fault finding in PCB assemblies.
Port Extension / De-EmbeddingCorrect measurement results to exclude the effect of any test fixture by mathematically moving the reference planes up to the DUT input and output
Bandwidth, Limit & Ripple TestsAutomate common measurement activities with powerful marker functions, including filter bandwidth and ripple calculations, and display of pass / fail test results.

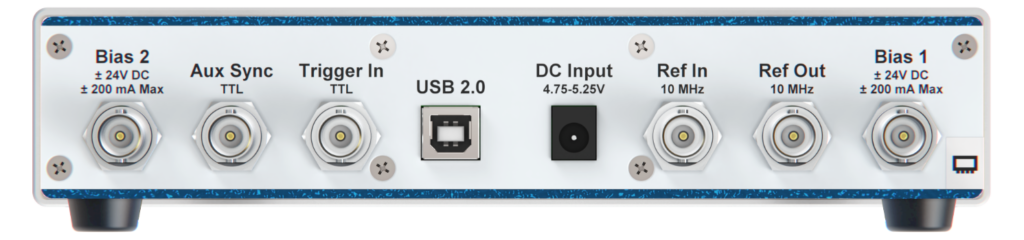

Internal Bias-TeesTwo bias-tee inputs allow provision of up to +24V DC / 200 mA max on either measurement port (or both), ideal for powering amplifiers in-line for s2p / P1dB characterization.
Configure an automated power sweep sequence at a fixed frequency, ideal for measurement of linearity or compression of amplifiers and other 2 port devices. Calibrate the power accuracy with support for external USB power meters.
Application Programming Interface (API)The eVNA View software suite incorporates an API which allows custom automation programs to be created for the eVNA. Most common programming environments are supported, including Python, LabVIEW, C# and MatLab.
Supports SCPI & Host or Remote Computer Control
USB 2.0 or later, Windows 7 or 10, i3 CPU or equivalent, 8GB RAM
Calibration Kits
Flexible User Calibration Options
Support for SOLT standards with full calibration kits available.
Mini-Circuits’ eMCal electronic calibration standard will be available soon, providing a fully automated method for user calibration of the VNA, without the need for repeated connections of multiple components.
Learn more:
Accessories
The eVNA comes standard with an AC/DC Grounded power adapter, a choice of power cord for various domestic and international standards, and a USB cable.
| Cables– Excellent Phase Stability from $114.95 at Mini-Circuits | |
|---|---|
| CBL-2FT-NMNM+ | N Male to N Male, Precision Test |
| CBL-2FT-SMNM+ | N Male to SMA Male, Precision Test |
| CBL-2FT-SFNM+ | N Male to SMA Female, Precision Test |
| Wrench | |
|---|---|
| TRQ-516-08 | SMA Torque Wrench |
| TRQ-N34-8 | N-Type Torque Wrench 3/4″ 8 lb-in |
| TRQ-N20-8 | N-Type Torque Wrench 20mm 8 lb-in |
